ProductTitle: Helmet goggles shoot testing machine
ProductModel: HT-6023
Category: 89 *
CompanyName: HOTOTECH
Phone: +8613553813526
Fax: +86076987889150
Characteristic: High-speed steel ball shooting test instrument for impact test of helmets, glasses, masks and other protective articles

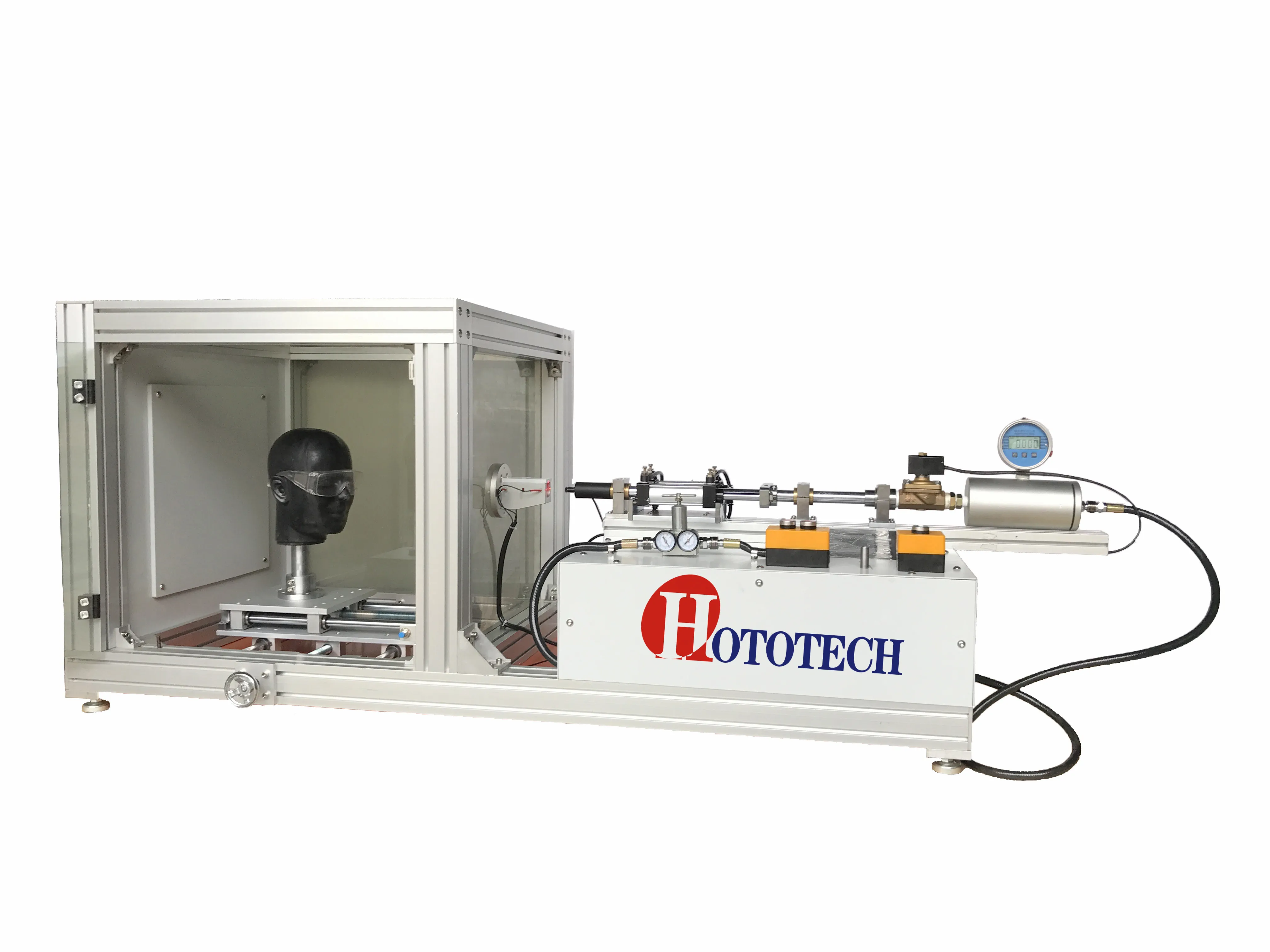

High velocity Impact testing machine for face shield   High velocity Impact testing machine purpose   This test is tended to determine the capability of a protector to resist impact from high velocity , low mass porjectiles    Helmet goggles shoot testing machine    It's according to ANSI Z.87.1,EN168 standard    High Velocity Impact Testing Machine specifications

Technical parameter:

  1. Lead pellet:1g±0.1g, 5.5mm±0.1mm in diameter
  2. Impact speed:140 170m/s (adjustable)
  3. Emergency; stop system to ensure safety , LCD exhibits the shooting speed(m/s)
  4. Adjustable headform holder to facilitate operation
  5. High accuracy laser velocimeter

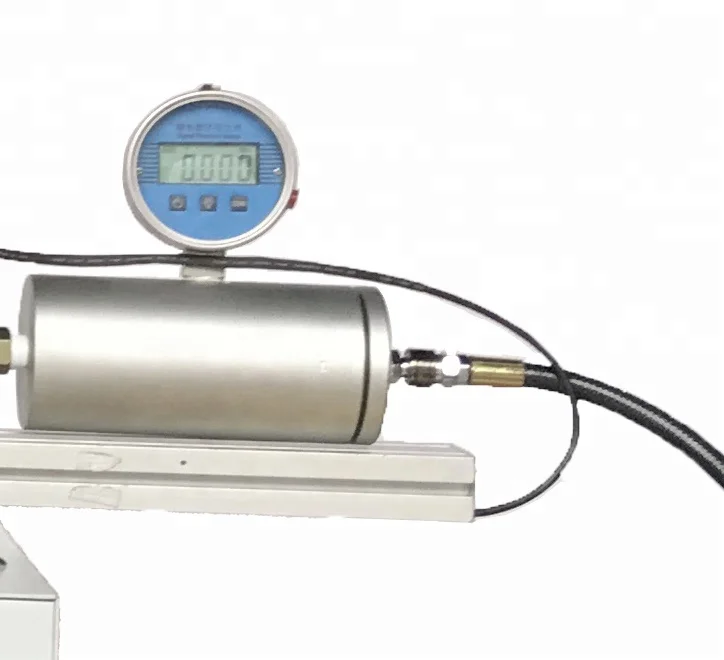

  6. An air compressor is needed to provide compressed air, with an air entry outlet to speed up the lead pellet
  7. A safety warning bulb, the system will not turn to working condition when either the door or the air entry outlet is not closed
  8. Test space is completely shut off , with only one viewing window to ensure safety

  Products Show

High Velocity Impact.jpg

High Velocity.jpg

Helmet goggle impact testing details picture.jpg Helemt goggle impact testing machine cylinder.jpg

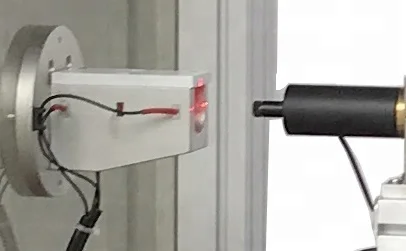

                   Helmet eye protector high speed shooter testing machine sensor.jpg
